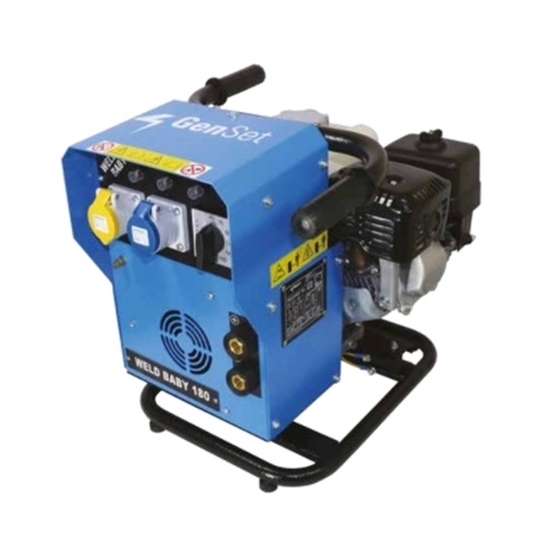

Genset WeldBaby 180i Petrol Welder Generator

€2465.00 incl tax

Inverter technology generator welder from Genset, amazing output to weight ratio powered by a Honda GX200 Petrol engine. The award-winning design is unique to Genset making it the lightest and smallest on the market able to run a 4mm welding rod. Portable engine driven welder with inverter Welding output power 165 A DC AC single-phase auxiliary power available Petrol engine 3600 RPM stage V Benefits Low oil consumption and reduced noise level Auto Idle One man lift Includes Honda GX200 Engine Control Panel Inverter

Qty:

Features

SMAW (stick) welding process
1 x 16 A, 110 V AC- single-phase EEC socket
1 x 16 A, 230 V AC- single-phase EEC socket
Switch breaker
Automatic idle device when no load is connected

Noise Level

Lwa 98 (73 dB a 7 mt)

DC Welding Technical Data

Duty Cycle @ 60%	165 A - 24 V
Output range	40 A - 165 A
Open Circuit Voltage	70 V
Max welding rod	4mm

AC generator - 50Hz Technical Data

Type	synchronous, permanent magnets (PMG)
Single-phase power	1 kVA - 230 V AC
Single-phase power	0,5 kVA - 110 V AC
Power factor	cos ф 1

Petrol Engine 3600 RPM Technical Data

Type	Honda GX 200 - STAGE V - 1 cyl. - 5,8 HP (4,3 kWm) - 196 cm3
Cooling system	Air
Single-phase power	0,5 kVA - 110 V AC
Starting system	Recoil
Fuel tank capacity	3,1 lt
Fuel consumption @ 75%	1,8 lt/h

Specifications

Genset part number	GEN-165pH
Insulation Class	H
Ambient temperature	40 °C (*)
Altitude	1000 mt (*)
Mechanical Protection	IP 23
Dry weight	35 KG
Length	510mm
Width	440mm
Height	460mm
