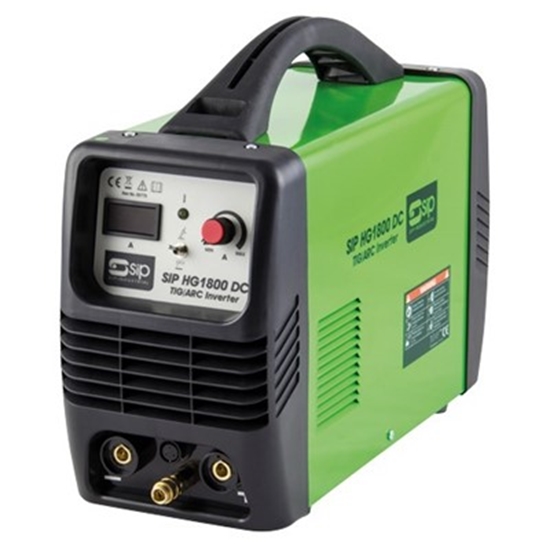

SIP 05775 HG1800HF DC TIG/ARC Inverter Welder

The SIP HG1800HF DC TIG/ARC is a dual-function inverter welder designed for frequent and intense use. It gives a stable arc that produces the highest quality welds, and features IGBT technology.

• 230v (16amp) input supply
• 10amp - 160amp TIG output current
• 10amp - 140amp ARC output current
• 1.6 - 3.2mm MMA electrode diameter
• 160A @ 60% / 140A @ 60% duty cycle
• Welds mild steel, stainless, and copper
• Latest IGBT inverter technology platform
• Super lightweight and generator friendly
• HF ARC ignition for start-up from 10amp
• Integrated anti-stick circuitry for ease
• Easy-to-use digital controls panels
• Supplied with accessories

Technical Description:

Input Supply230v (16amp) TIGOutput Current10amp - 160amp (TIG)
10amp - 140amp (ARC)Duty Cycle160amps @ 60% (TIG)
140amps @ 60% (ARC)Pulse FacilityNoFoot PedalNoInsulationClass HProtectionIP21SNet Weight14.50kgGross Weight17.00kgPackaged Dimensions480(H) x 480(W) x 240mm(D)
