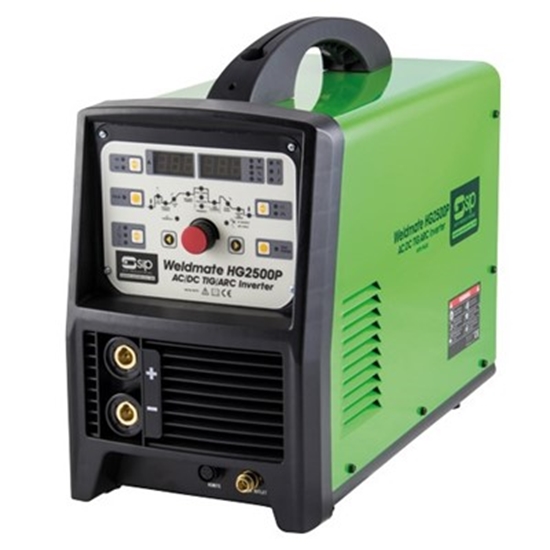

SIP 05770 HG2500P TIG/ARC Inverter Welder

The SIP HG2500P TIG/ARC is a dual-function inverter welder with an integrated 9-stage parameter adjustment program. With added IGBT and Pulse technologies, this unit is reliable in all applications.

• 230v (16amp) input supply
• 5amp - 200amp DC TIG output current
• 10amp - 200amp AC TIG output current
• 5amp - 170amp ARC/MMA output current
• 1.6mm - 4mm ARC/MMA electrode diameter
• HF TIG/Lift ARC & TIG, MMA ARC processes
• For stainless & mild steel aluminium, copper
• Latest IGBT inverter technology platform
• Super lightweight and generator friendly
• 9-stage parameter adjustment including
  slope-up/slope down, pre/post gas, AC
  balance and reliable frequency control
• Optional foot pedal accessory to buy
• Integrated variable TIG pulse facility
• Easy-to-use control panels

Technical Description:

Input Supply230v (16amp)Output Current10amp - 200amp (AC TIG)
5amp - 200amp (DC TIG)
5amp - 170amp (ARC)Duty Cycle200amp @ 60% (TIG)
130amp @ 60% (ARC)Pulse FacilityYesFoot PedalYesInsulationClass HProtectionIP21SNet Weight22.50kgGross Weight25.00kgPackaged Dimensions460(H) x 655(W) x 325mm(D)
