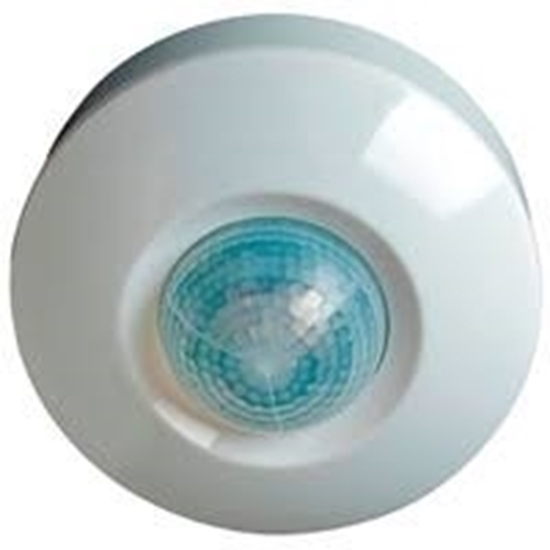

UNIVERSAL 360° PIR, recessed/surface, IP20, White

€43.00 incl tax

Qty:

Suitable for both surface and recessed indoor applications
Injection moulded ABS body - impact resistant
Plug in terminal block and sensor module
Large terminals accept 2 x 1.5mmý conductors in each terminal; facility to loop in/loop out to parallel sensors or multiple fittings
Adjustable time delay of 10sec to 40min ensures that lighting is switched off with required delay
Adjustable lux setting of 10 to 2000lx
Detection range 360ø, detection distance 10m at 2.8m mounting height
Passive infra-red; ensures light is switched on when sensor detects movement of heat, therefore lighting is switched off when the area is vacated and minimize false/unwanted triggering
Adjustable passive photocell; inhibits switching where natural light is sufficient
High load contact rating; allows numerous fittings to be switched
Maximum LED load of 300W
Maximum Fluorescent load of 600W
Maximum Resistive load of 2000W
IP rating: when surface mounted it is IP44 and recessed is IP20

Suitable for both surface and recessed indoor applications
Injection moulded ABS body - impact resistant
Plug in terminal block and sensor module
Large terminals accept 2 x 1.5mmý conductors in each terminal; facility to loop in/loop out to parallel sensors or multiple fittings
Adjustable time delay of 10sec to 40min ensures that lighting is switched off with required delay
Adjustable lux setting of 10 to 2000lx
Detection range 360ø, detection distance 10m at 2.8m mounting height
Passive infra-red; ensures light is switched on when sensor detects movement of heat, therefore lighting is switched off when the area is vacated and minimize false/unwanted triggering
Adjustable passive photocell; inhibits switching where natural light is sufficient
High load contact rating; allows numerous fittings to be switched
Maximum LED load of 300W
Maximum Fluorescent load of 600W
Maximum Resistive load of 2000W
IP rating: when surface mounted it is IP44 and recessed is IP20
